Exporting Data

Historical data may be exported from MotiveWave™ in several different formats. Choose File -> Export Data from the top menu bar (File -> Chart -> Export Data from the Console menu bar). This dialog has the following elements:

1. Symbol – Choose the instrument that you would like to export. By default this is the instrument from the chart where the dialog was launched.

2. Bar Size – Choose the Bar Size for the historical data

3. Bar Count – Number of Bars to Export. Choose All Available to export all available data in the historical database

4. Regular Trading Hours (RTH) Data – Check this to only include bars that are part of the regular trading session

5. Data File – Click on the Browse button to the right to choose the data file where the data will be saved.

6. Format – Choose the Export Format

   1. CSV – yyyyMMdd HHmmss,O,H,L,C,V

   2. CSV – dd/MM/yyyy HH:mm:ss,O,H,L,C,V

   3. Ninja Trader – Start Of Bar Time

   4. Ninja Trader – End Of Bar Time

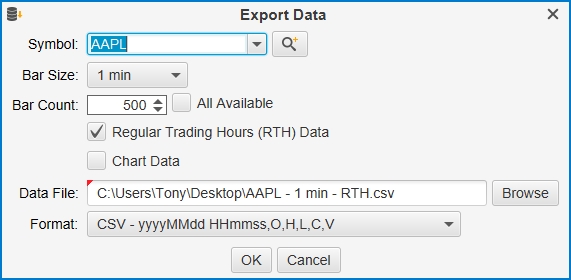

Export Data Dialog
