Linking Charts

Chart linking is a powerful feature that enables you to apply an action to a set of charts (instead of a single chart at a time). By default charts are unlinked (no link group assigned). There are a few different ways to assign a link group to a chart. The simplest is to choose the link group from the status bar at the bottom of the window (Note: this also works for DOM and Time/Sales windows).

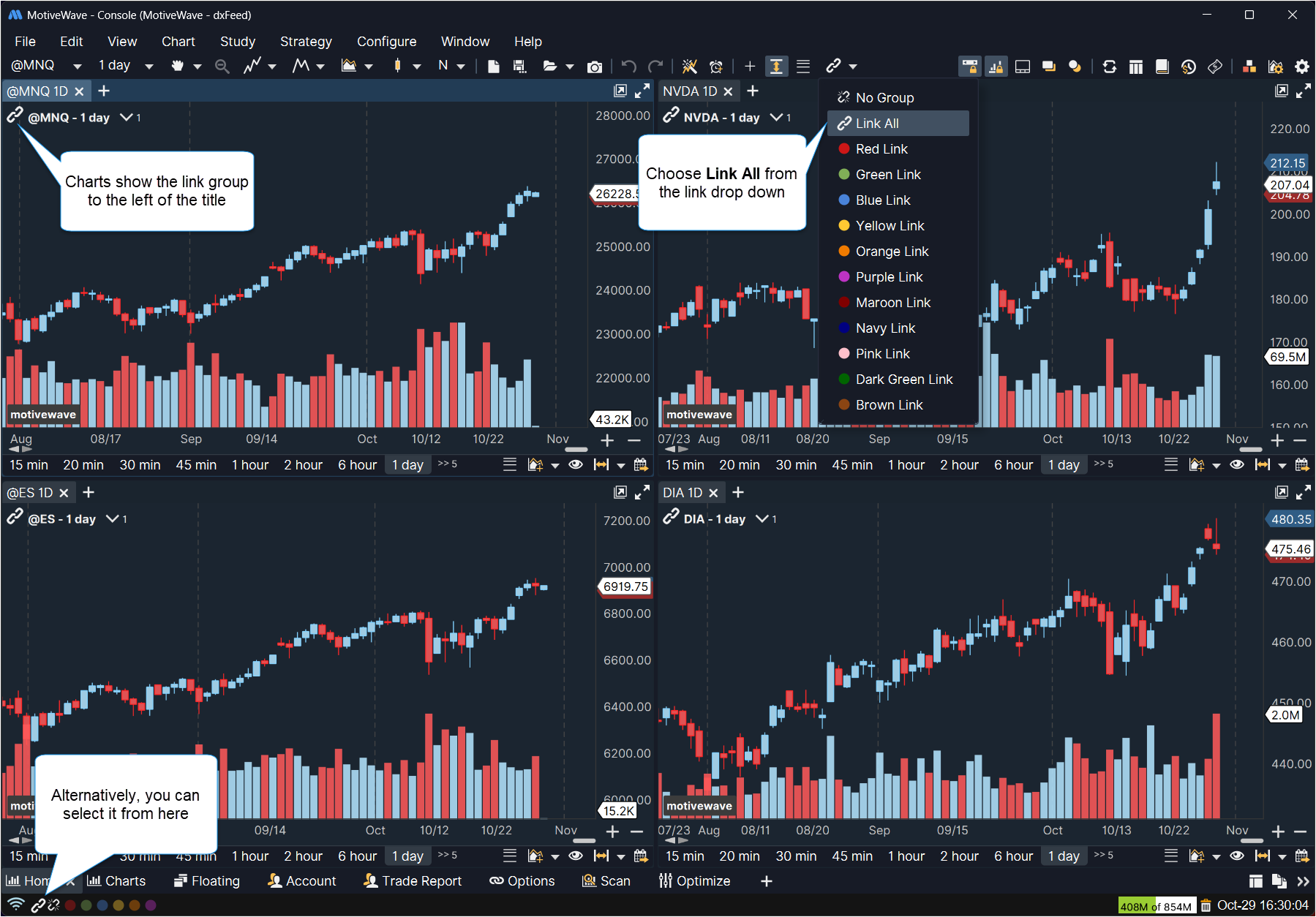

Link Chooser

There are three modes for linking charts:

  • Instrument (Symbol) – In this mode, changing the symbol on one chart will change all charts in the link group to the same symbol

  • Time (Bar Size) – If the bar size is changed on a chart in this mode, all linked charts will change to the same bar size

  • None (Replay Mode) – This mode is for linking charts together for use in replay mode (linked charts are part of a replay group)

Link modes can be chosen for each link color individually. These options can be found in the Preferences dialog (Configure -> Preferences from the console menu bar).

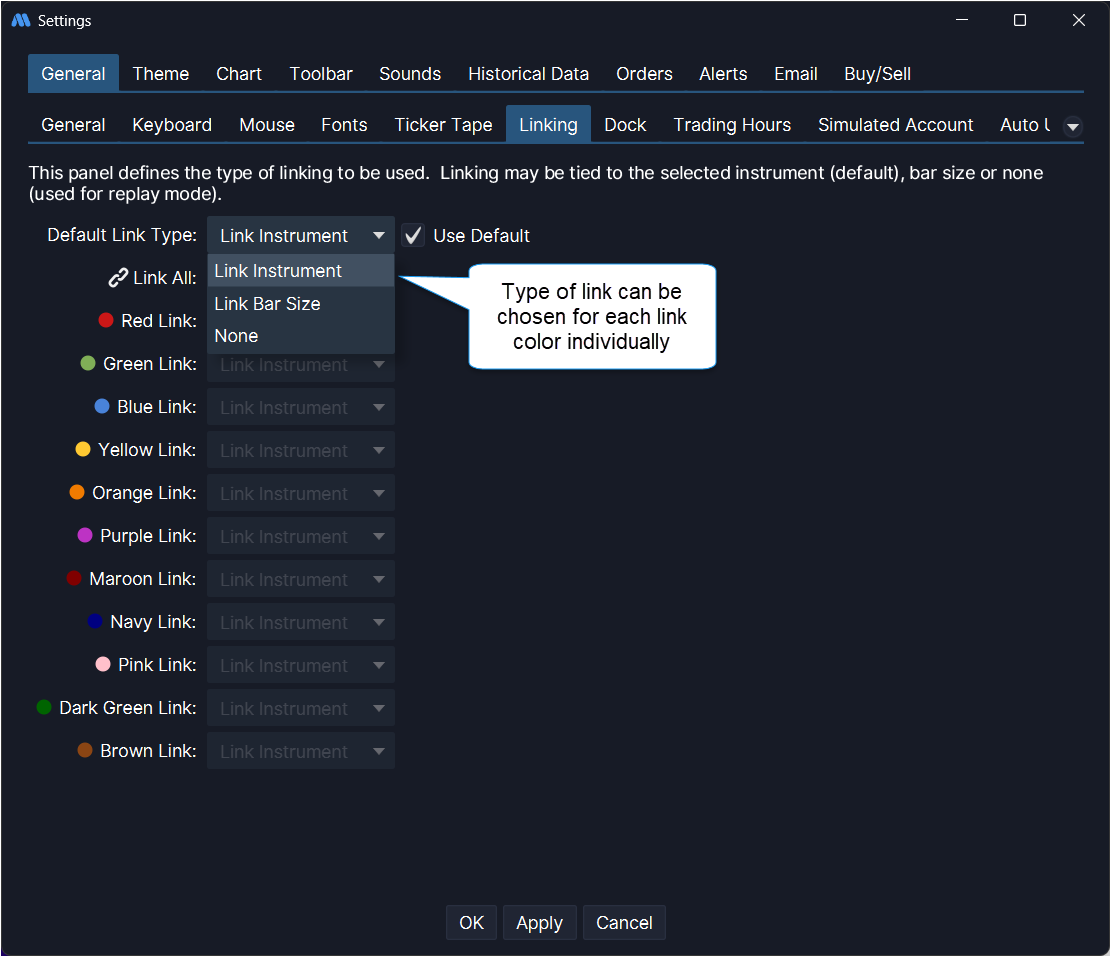

Link Mode

Other windows such as the DOM and Time/Sales windows can also be given a link group. In the example below, two charts and a DOM Window have been assigned the same link color. Choosing a new symbol from the quick search box from one of the windows will automatically change the symbol for all windows in the link group.

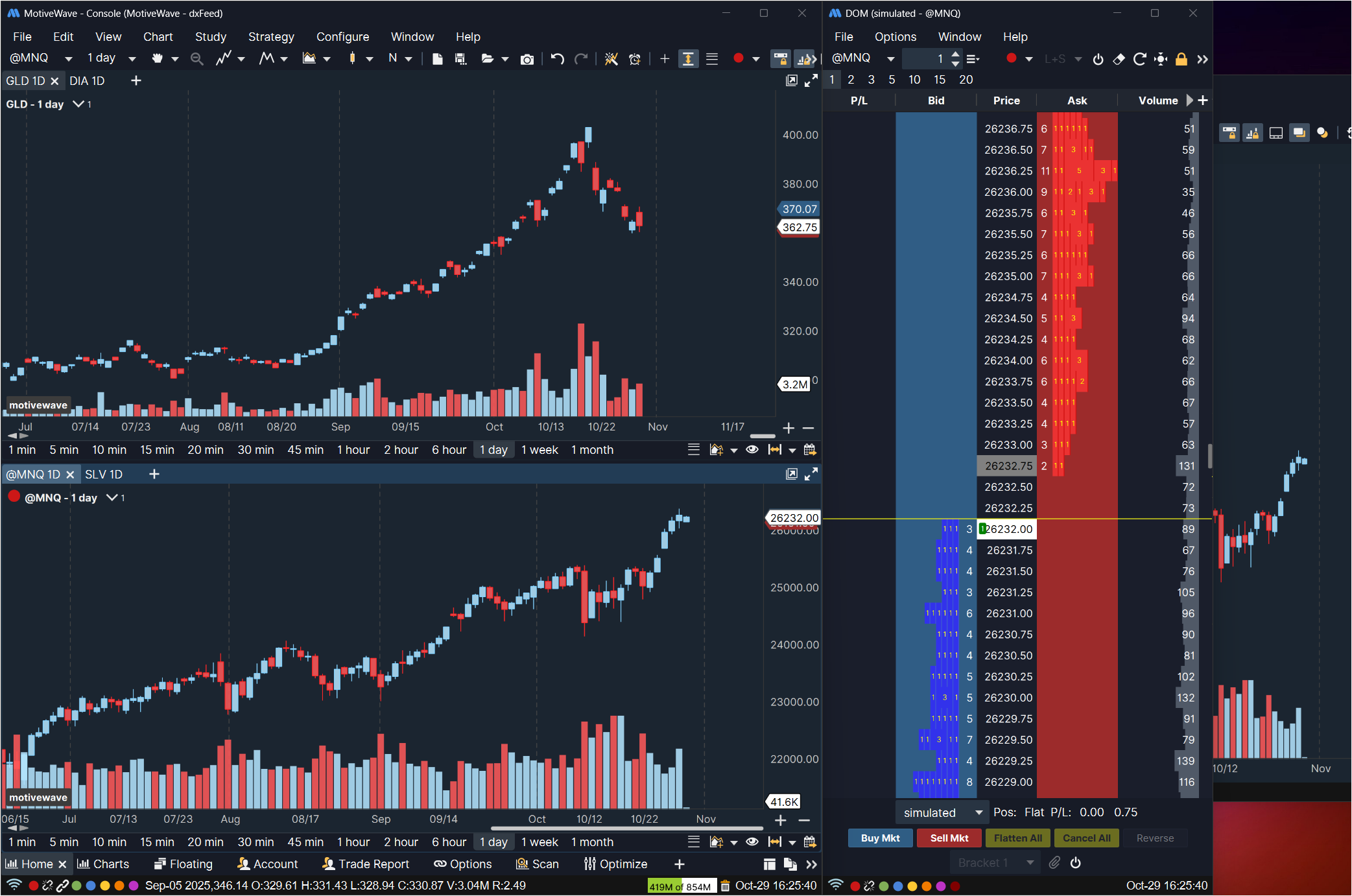

Linked Example Step 1

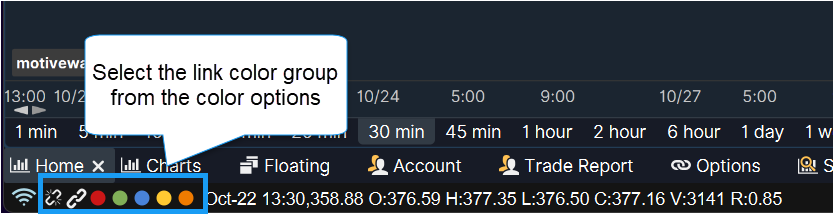

Linked Example Step 2

Linking With Templates

As discussed in the Study Templates section the linking feature can be used in conjunction with the Study Templates. If enabled (see Preferences dialog, Chart -> Templates tab), applying a template to one chart in the link group will apply the template to all charts in the link group.

If you are working with the Console window (or a Desktop), you will notice an additional linking option, Link All. This option will link all charts that are on the current page. This provides a convenient way to link all the charts on a page with one click (instead of choosing a link for each chart).

Link All Charts
